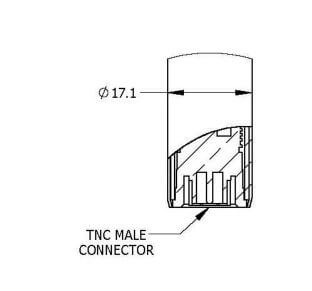

RRD1019B-TNC male connector

RRD1019B-TNC

Handheld Military Antenna | UHF, Multiband

The RRD1019B-TNC is a rugged, yet flexible, blade style antenna with a double gooseneck design operating from 225-512 MHz. It is designed for manpack, handheld and/or vest mounted applications.

Product Specifications
ModelRRD1019B-TNC
AntennaDipole
Frequency 225-512 MHz
Impedance50 Ohms Nominal
VSWR2.75:1 Maximum
PolarizationVertical
PatternOmni-Directional
RF Power Capacity20 Watt CW
Gain-1.0 to +1.0 dBi Typical
ConnectorTNC Male
Max Height539.00 mm Max
Max Weight150 g Max
ColorBlack
Environmental TestingMIL-STD-810G Compliant
