RRD1019B
Handheld Military Antenna | UHF, Wideband
The RRD1019B is a rugged, yet flexible, blade style antenna with a double gooseneck design operating from 225-512 MHz. It is designed for handheld and/or vest mounted applications that works with the PNR-1000 radio.
| Model | RRD1019B |
| Antenna | Dipole |
| Frequency | 225-512 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 3.0:1 Maximum |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| RF Power Capacity | 20 Watt CW |
| Gain | -1.0 to +1.0 dBi Typical |
| Connector | “SMA” Female |

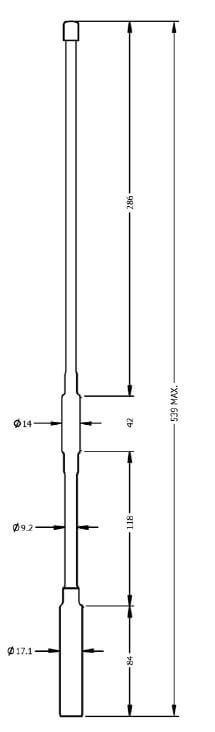

| Max Height | 539.00 mm Max |
| Max Weight | 150 g Max |
| Color | Black |
| Environmental Testing | MIL-STD-810G Compliant |
